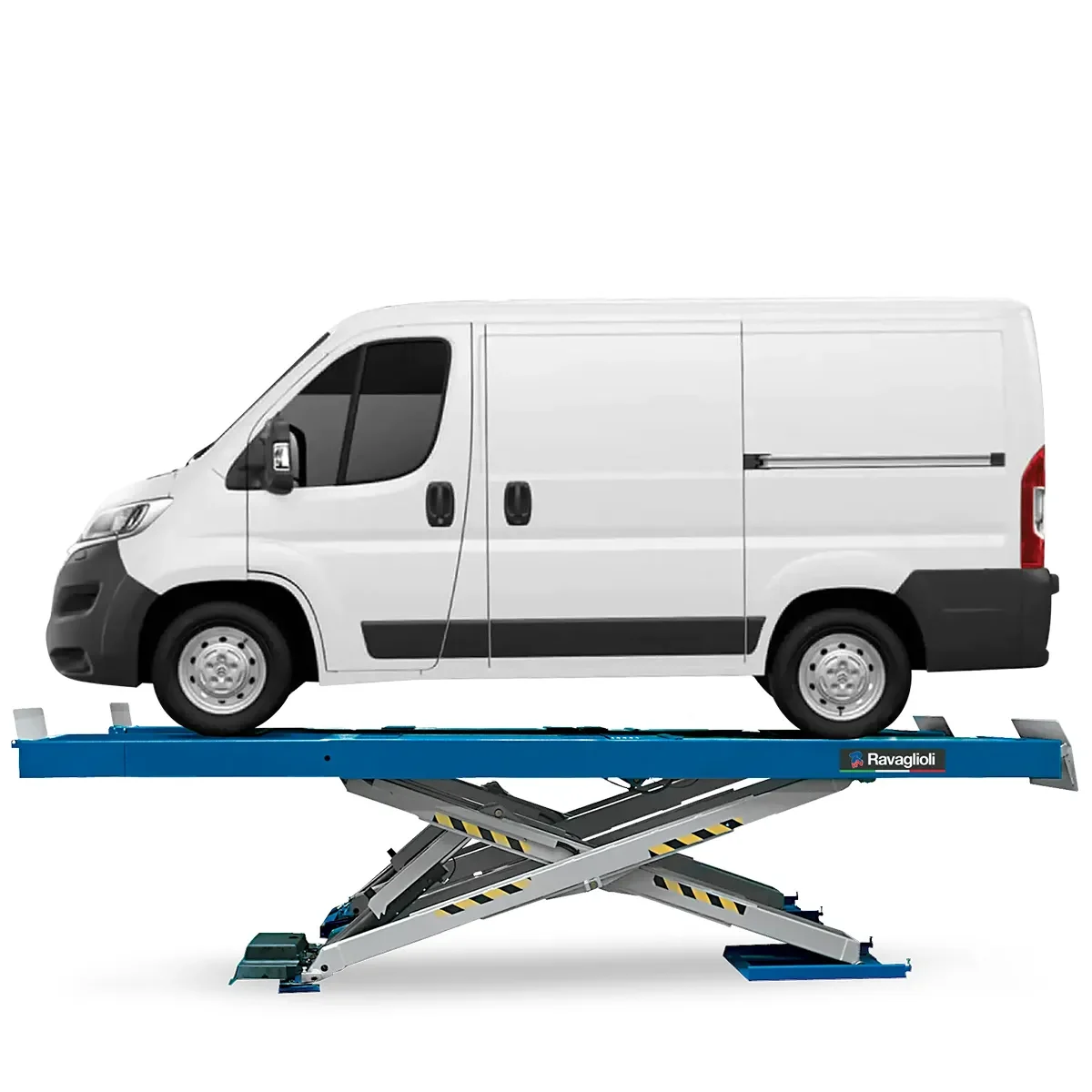

Bílalyfta skæra Platform 4,2T lyftigeta

RAV600N Series – One Lift for Double Solutions: The new lift geometry simplifies the flush mounting pit construction. Lifts with big platforms, structured and designed for maximum stability also when loaded with large vehicles.

• Very versatile: the same lift can be flush or floor mounted
• Easy installation: easy setting up of pit
• Wide ranging applications: suitable for different operations on various types of vehicle

• Large wheel stop for high working safety.
• Integrated wheel free lift with levelling system to ensure a completely flat working surface.
• Pre-drilled platform for Ravaglioli 3D wheel alignment measuring heads brackets housing.
• The hydraulic synchronisation of the platform movements is independent of the load distribution, and is guaranteed by a patented hydraulic synchronization device.
• All pivoting points are equipped with maintenance free self-lubricating bushings.
• Base plates with levelling system for an easy installation.
• Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in parking position.
• The new lift geometry simplifies the flush mounting pit construction.
• Greater lifting height.

• All lifts are supplied for recessed installation – The drive on ramp kit (see accessories) enables to convert the lift from flush mounted to floor version.
• Open flush mounting for turntables: Edge-free platforms that allow the turntables to be positioned over the entire surface of the platform width – Ideal when working on vehicles with narrow track.
• Optimal sliding of jacking beam: Preinstalled galvanised guide on the inner side of the platform, which allows fast and smooth sliding of the jacking beam.
